SUNJOY is an excellent heating system, which provides heat in a similar way as solar energy, giving out far infrared heat, and contributing to your well-being.

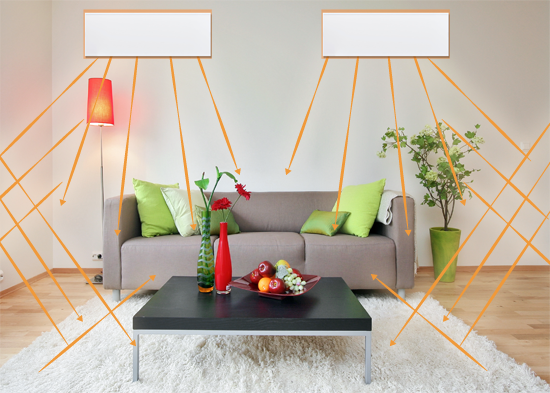

When it is on, SUNJOY immediately starts creating a pleasant and comfortable environment by emitting mild radiant heat, like a mini shining sun, but without the glow.

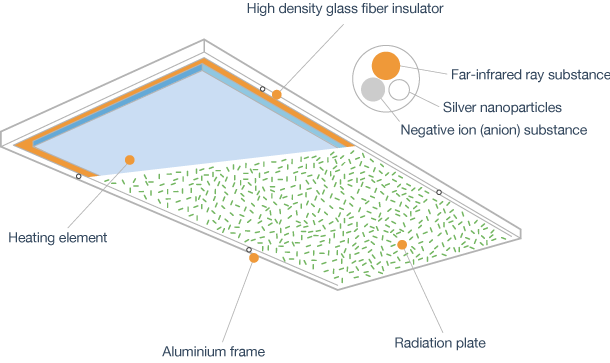

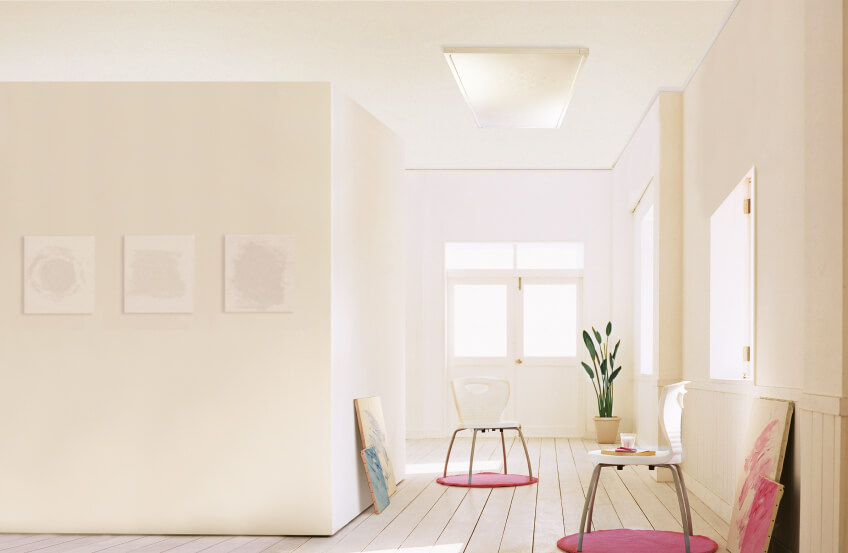

SUNJOY is a radiant heating panel, designed to provide you a sense of fuzzy comfort and well-being.
With an emitting efficiency of more than 93%, and a wave-length of around 10 nm it matches human metabolic activity.

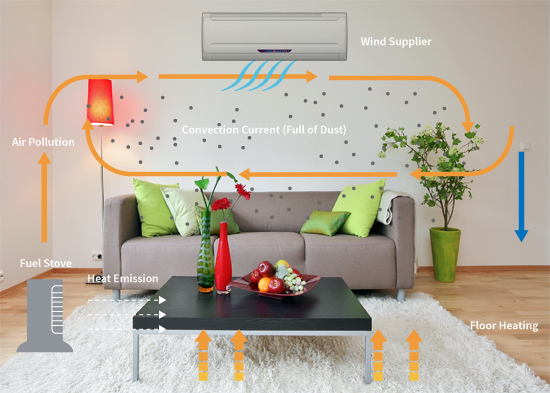

There can be a 10o C difference between
the ceiling and the floor
SUNJOY is a radiant heating panel, designed to provide you a sense of fuzzy comfort and well-being. With an emitting efficiency of more than 93%, and a wave-length of around 10 nm it matches human metabolic activity.

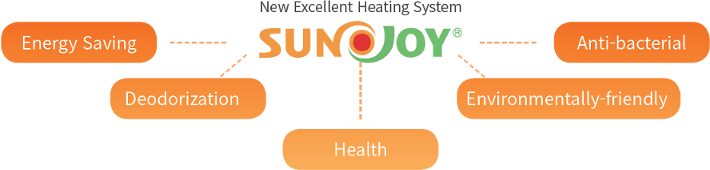

50% saving on energy compared to existing electric heating systems
Purifies the air
Emits refreshing air
Impacts the dust in the air
Contributes to relaxation
Heightens resistance to disease
Improves human metabolism
Far Infrared radiation ratio 93%
No harmful electro-magnetic rays
No harmful gas emissions
Prevents new house syndrome
Sterilizes the room
Gives natural antibacterial effects
|Classification||Installation Type||Size (mm)||Weight (kg)||Voltage (V)||Current (A)||Power Consumption (W)||Heat Value (Kcal)||Area of
Heating Plate (m2)
|SR-3||EXPOSED(N)||606 x 606 x 20||2.34||120
|MOLDED(M)||598 x 598 x 20||2.32|
|SR-4D||EXPOSED(N)||606 x 606 x 20||3.2||1.97||434||374||0.53|
|MOLDED(M)||598 x 598 x 20||3.16|
|SR-5D||EXPOSED(N)||606 x 906 x 20||4.2||2.62||578||497||0.71|
|MOLDED(M)||598 x 898 x 20||4.12|
|SR-7D||EXPOSED(N)||606 x 1206 x 20||5.3||3.34||735||632||0.89|
|MOLDED(M)||598 x 1198 x 20||5.12|
|SR-8D||EXPOSED(N)||606 x 1506 x 20||6.28||3.93||866||745||1.07|
|MOLDED(M)||598 x 1498 x 20||6.04|
We offer a sample design which can be adapted for different usage and sizing.
|Room Type||Size (m)||Area (m2)||Panel Type (Ceiling Height: 2.4M)||Temperature|
|Restroom||1.3 x 1.7||2.2~3.3||SR-4||10~15°C|
|Standard Bathroom||1.7 x 2.3||3.8~5.5||SR-5||10~15°C|
|Large Bathroom||2.6 x 3.3||8.2~10.9||SR-7||7~10°C|
|Office(small)||2.6 x 3.3||8.2~10.9||SR-7||7~10°C|
|Office(Medium)||10.0 x 10.0||100||SR-7x14||7~10°C|
|Office(Large)||10.0 x 33.0||330||SR-7x46||7~10°C|
|Hospital Unit||4.0 x 4.9||17.4~21.8||SR-7x4||7~10°C|
|Officetel||4.6 x 6.6||28.3~32.7||SR-7x4||7~10°C|
* The heating panel shall occupy 10 to 15 percent of the ceiling space, and the panel position should consider the lights and main heating area.
* The panel shall have a gap of about 600 mm from the wall, and the distance between panels shall be twice the panel length.

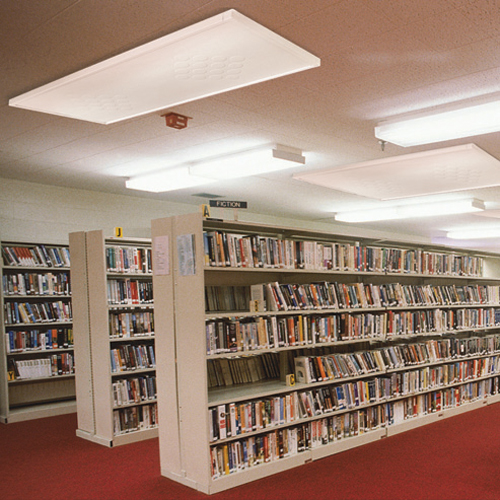

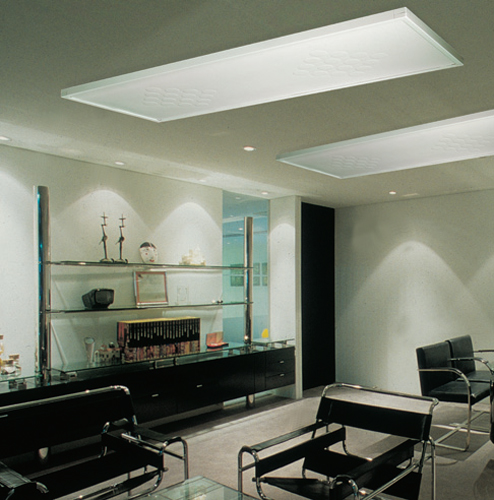

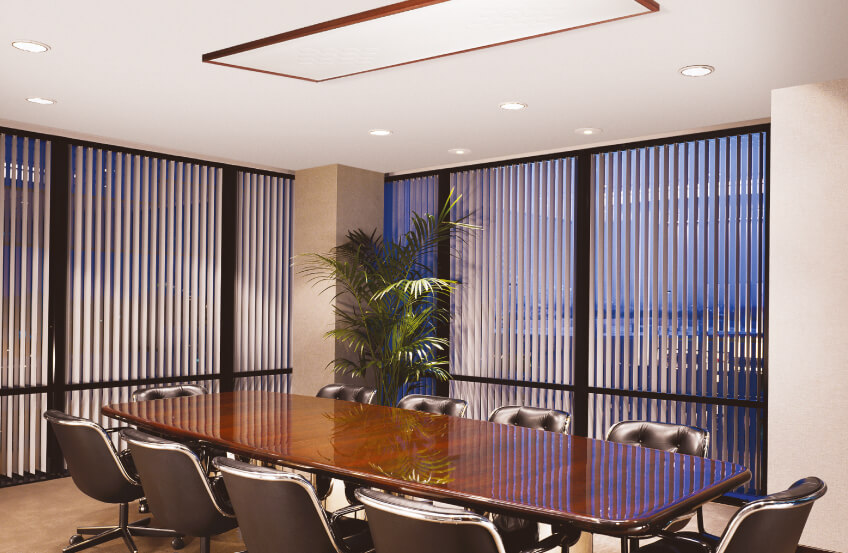

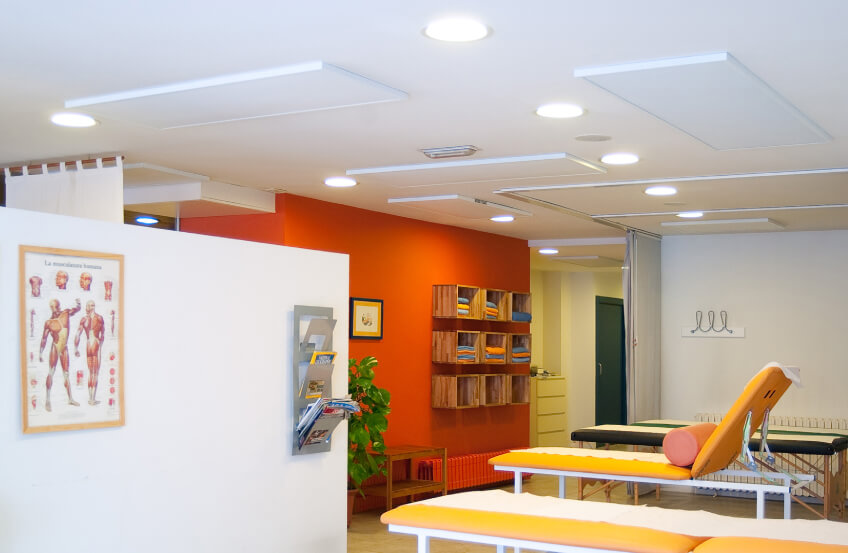

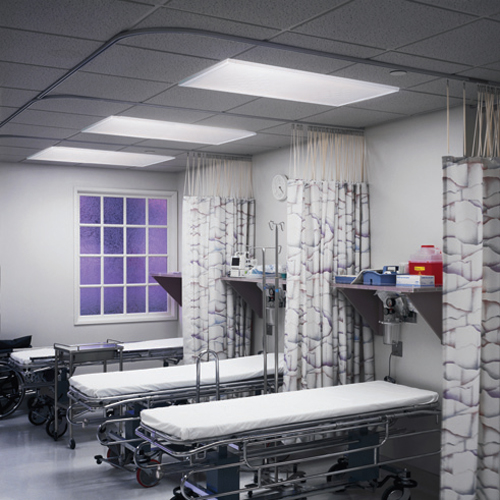

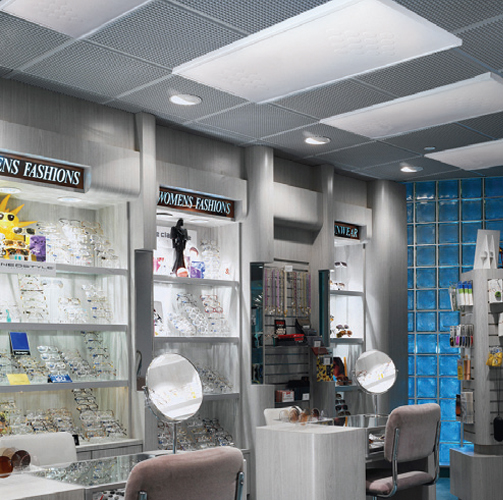

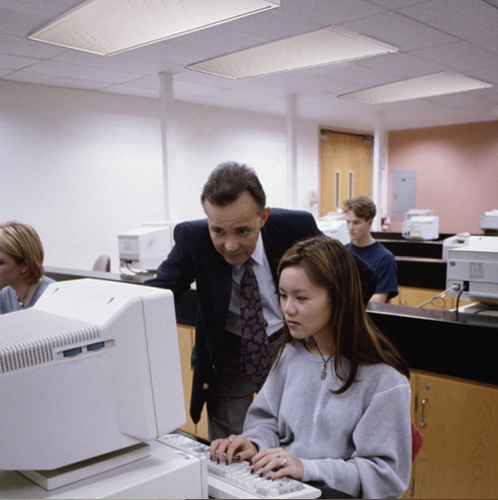

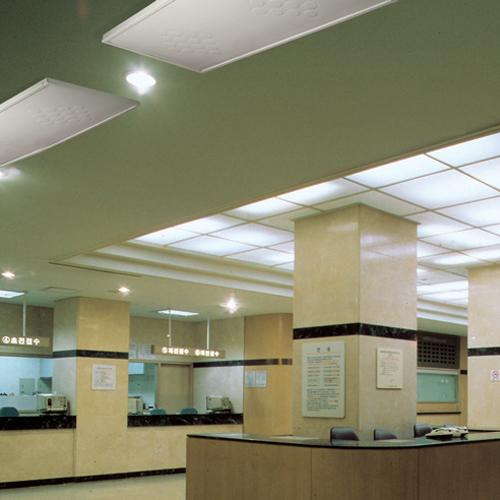

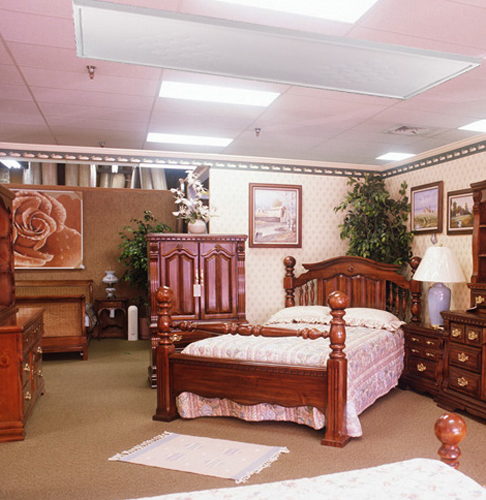

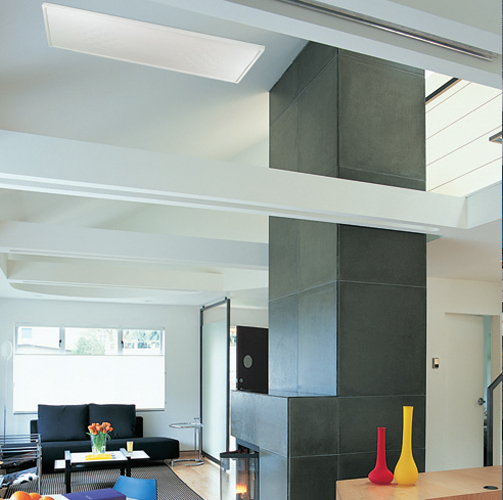

Sunjoy addresses a wide range of customers: residential, commercial, industrial, office buildings, shopping centres, manufacturing and warehouses, highly recommended to hospitals, retirement homes, clinics, agricultural, government and military facilities.

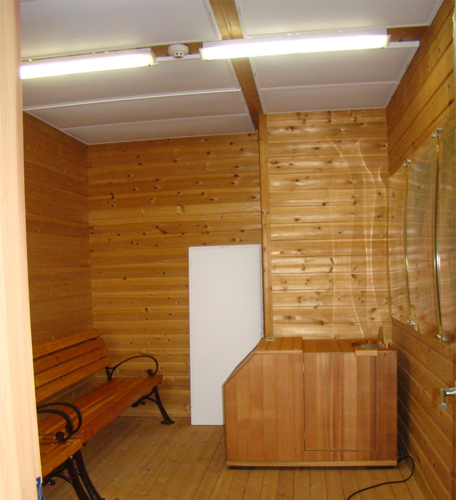

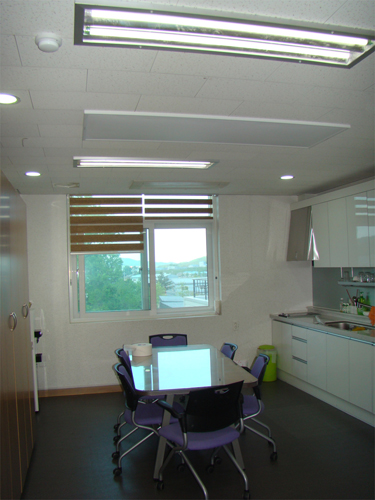

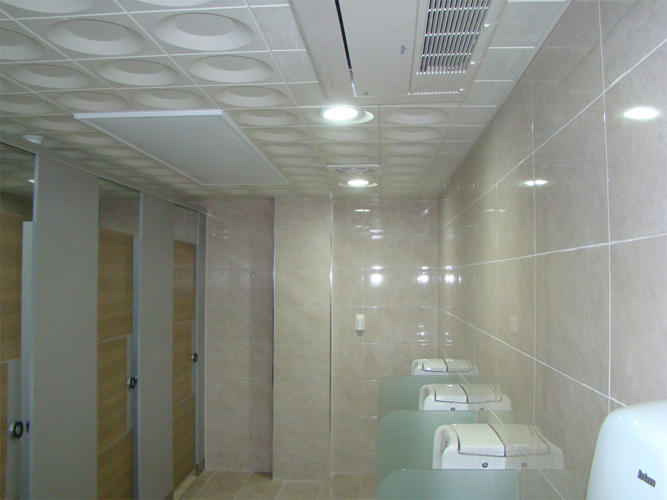

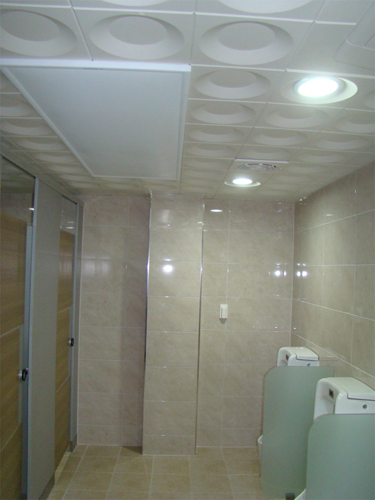

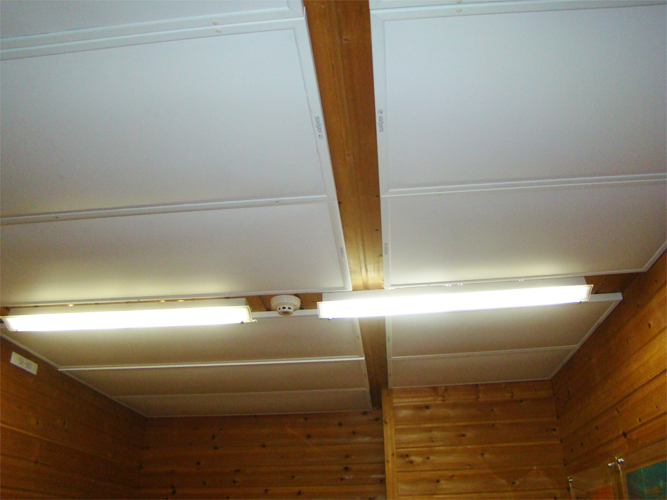

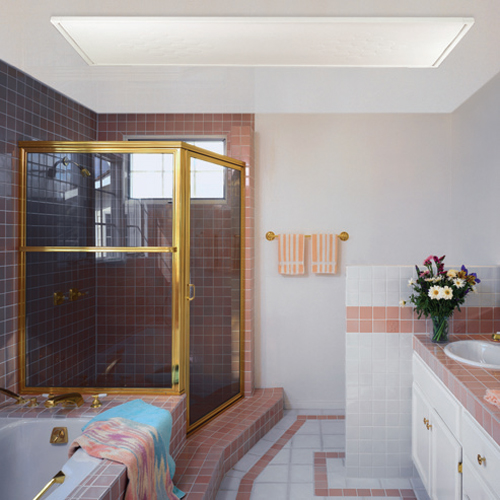

Sunjoy panels can also be installed in humid environments: saunas, kitchens or washrooms.BECOME A DEALER
